Webhook signature validator

When implementing BVNK's webhook system, signature validation is critical for security. The BVNK Webhook Signature Validator is a client-side tool that helps developers verify webhook signatures from BVNK's payment processing system. This tool allows you to:

• Validate webhook signatures without sending sensitive data to any external servers.
• Troubleshoot signature validation issues in your implementation.
• Compare your generated signatures against signatures received from BVNK.
• Identify configuration problems in your webhook handling code.

Security Note

All validation happens in your browser—no sensitive information is transmitted to any server, making this tool safe to use with production credentials.

---

How to use the validator

Gather required information

Before using the validator, collect the following information:

Field	Description
Secret Key	Your unique webhook secret key provided by BVNK
Webhook URL	The complete URL where you receive webhooks (Standard only)
Received Signature	The signature value from the X-Signature header of the webhook
Content Type	The content type of the webhook, typically application/json (Standard only)
JSON Payload	The complete body content of the webhook

Enter information into the validator

1. Select the appropriate tab for your webhook type.
2. Enter your Secret Key in the designated field.
3. For Standard webhooks: Input the complete Webhook URL, including the protocol (https://).
4. Paste the Received Signature exactly as it appears in the X-Signature header.
5. For Standard webhooks: Verify the Content Type matches.
6. Paste the JSON Payload exactly as received, maintaining the same formatting (raw format).
7. Click the "Validate Signature" button.

The tool will process the information locally in your browser and display the results showing whether the signature is valid or invalid.

Review diagnostic information

If the signature validation fails, review the diagnostic information section, which provides:

Diagnostic Field	Description
Webhook Path	Shows the extracted path from the URL (Standard only)
String Used for Generating Signature	Displays the exact string that was used to create the signature
Generated Signature	The signature calculated by the tool
Received Signature	The signature you entered for comparison

---

Choose your webhook type

BVNK uses two different signature formats depending on the webhook service. Select the appropriate validator for your integration:

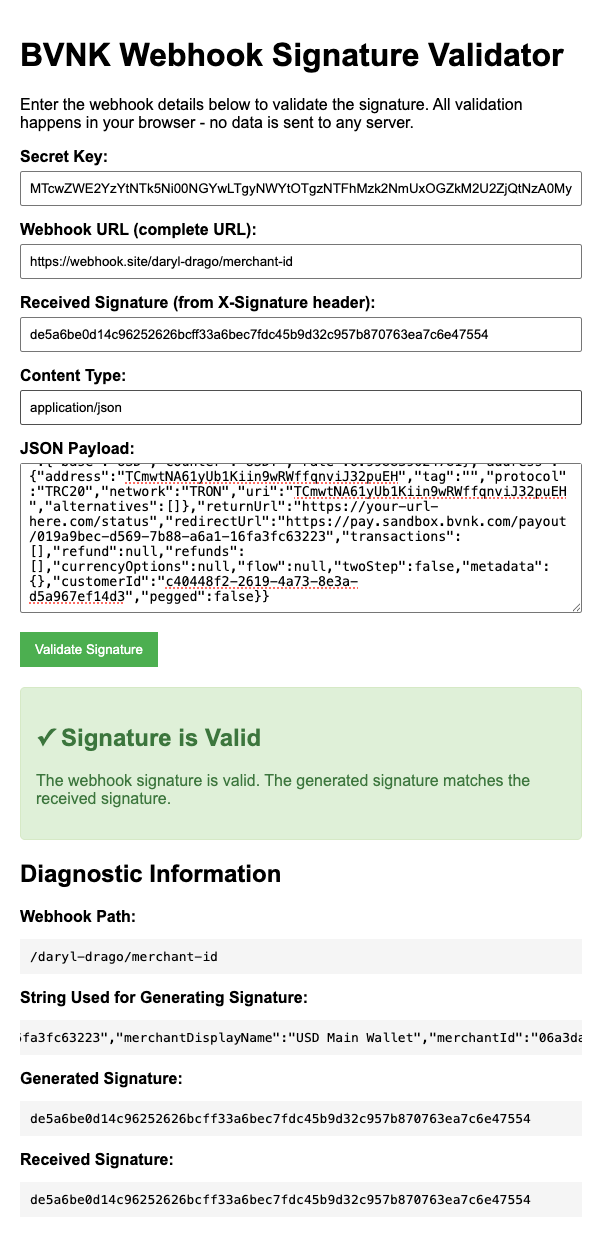

Standard Webhooks (Hex HMAC-SHA256)

This validator is for webhooks that use hexadecimal HMAC-SHA256 signatures. The signature is generated from the combination of webhook path, content type, and payload.

{
    "source": "payment",
    "event": "statusChanged",
    ...
}

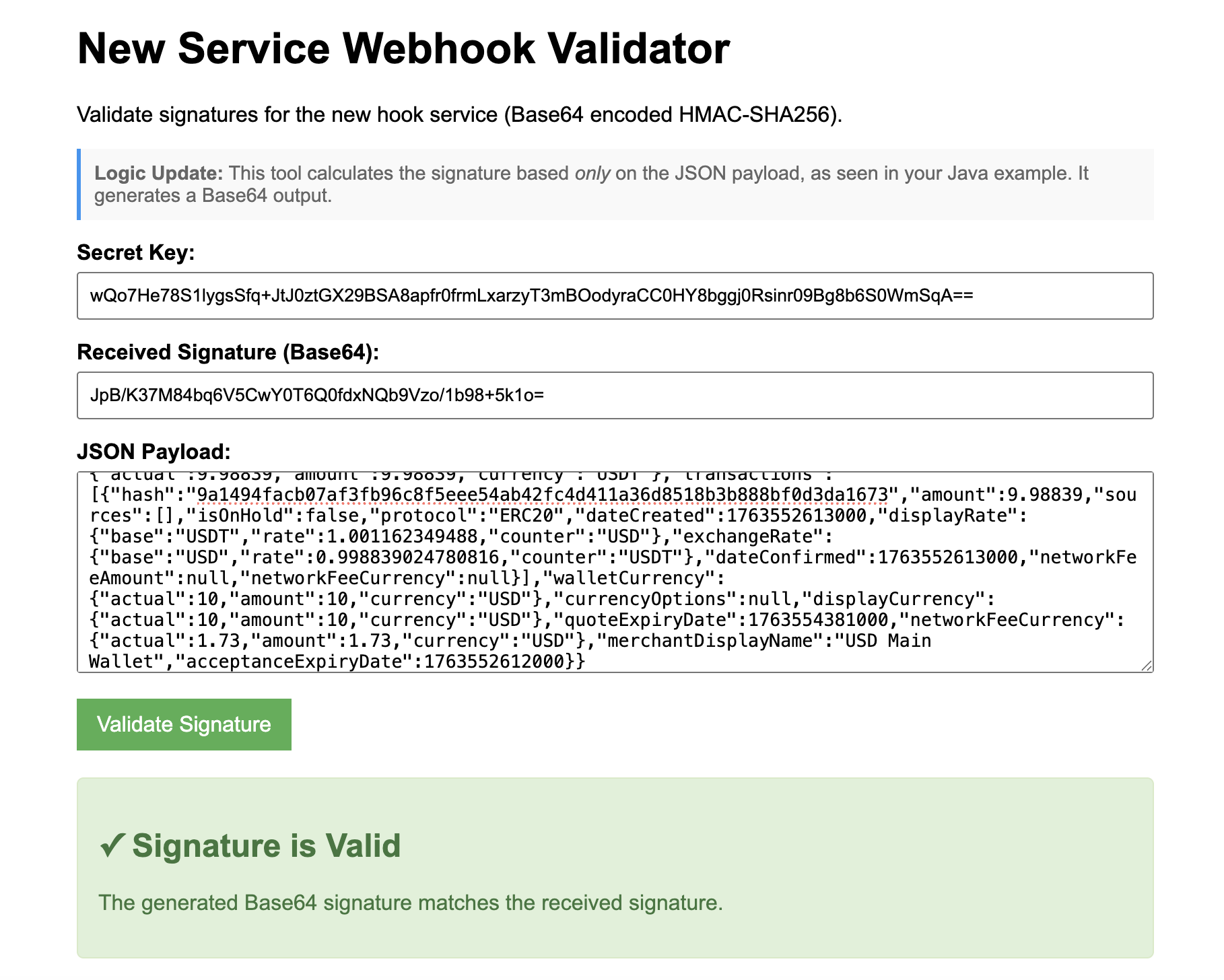

New Hook Service (Base64 HMAC-SHA256)

This validator is for the new webhook service that uses Base64 encoded HMAC-SHA256 signatures. The signature is generated solely from the payload.

{
    "event": "bvnk:payment:crypto:status-change",
}

---

Troubleshooting tips

Signature mismatch issues

• Ensure your Secret Key is entered exactly as provided by BVNK.
• Verify that your JSON payload maintains the exact formatting as received (no extra spaces or line breaks).
• Check that the Content Type matches exactly.
• For webhooks with query parameters, ensure the tool is extracting the correct path.

Common formatting problems

• Whitespace differences: The payload must match character-for-character, including all whitespace
• Encoding issues: Ensure special characters in the payload are preserved
• URL encoding: The webhook path should not include query parameters in the signature calculation

Comparing signatures

Use the diagnostic information to compare:

1. The Generated Signature from the tool
2. The Received Signature you entered

If they differ, check:

• Are you using the correct webhook type (Standard vs. New Hook Service)?
• Is your secret key correct?
• Is the payload exactly as received?
